QUIET, DEPENDABLE, LIGHTWEIGHT.

Which is exactly what you want in a portable outboard. The BF5 is incredibly lightweight and compact. It’s easy to transport and ideal for small tenders, and jon boats.

And with features designed to make your boat ride smooth, quiet, and Honda dependable, you’ll be ready to enjoy a day on the water for years to come.

HONDA MARINE 2024 (12943 downloads )

LIGHTWEIGHT PORTABILITY

Lightweight and compact

The BF5’s lightweight, compact design makes it perfect for small tenders, sailboats, jon boats, and inflatables. Weighing in at only 60 pounds, this motor is easy to transport.

Easy to carry and install

Enlarged carrying handles provides superior portability and ease of installation.

CONVENIENT CONTROLS

Convenient Folding Tiller Handle

The tiller handle’s compact design allows for easy transportation and storage. Fold it either up or down as you prefer.

Twist grip throttle – more comfortable to use

Allows for precise throttle control. A unique throttle tensioner minimizes driver fatigue.

F-N-R Gearshift

The BF5 features full forward, neutral, and reverse shifting. A safety lockout system allows the engine to be started in neutral gear only.

Shallow Water Drive

An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas. Shallow water drive greatly reduces the risk of engine damage.

QUIET & SMOOTH PERFORMANCE

Quietest in its class

The BF5 lead its class in noise reduction from low to high speed.

Low vibration for a comfortable ride

Honda’s exclusive design optimizes the isolation mounts to minimize the transfer of vibration to both the tiller handle and the transom. The custom rubber motor mounts absorb vibration, resulting in a motor with among the lowest handle vibration in its class.

Large Displacement Engine for more power

Water-cooled, single cylinder design for better low- to mid-range power.

EASY OWNERSHIP

Best In Class Run Time

The large capacity 1.5 L internal fuel tank provides enough fuel for over 40 minutes of wide open throttle operation. Need more run time? The BF5 offers an external fuel tank connection.

6 Amp Charging System Available

An optional 6 amp charging system helps keep accessories and electronics charged.

Easy Starting

You’ll be impressed with how easy it is to start the BF5. The decompression mechanism opens the exhaust valve during the starting process. This reduces the amount of force needed to start the motor. Starting is easy, every time.

One-Push Stop Switch

The one-push stop switch makes it just as easy to shut off the motor. Pressing the stop button once safely shuts off the motor without it re-starting.

LEGENDARY RELIABILITY

True 5 Warranty -Unmatched Peace of Mind

Honda’s True 5 Warranty is the best in the business. This transferable, non-declining warranty is the same on the first day as it is on the last.

Honda Corrosion Protection

Your Honda can continue to look and perform like new, thanks to our corrosion protection system. It includes a durable, multi-layered paint process, sacrificial anodes, and waterproof connectors.

Oil alert protects your engine

A Low Oil Alert combined with an RPM reduction feature protect the engine from severe damage if the oil reaches a low pressure.

SPECIFICATIONS

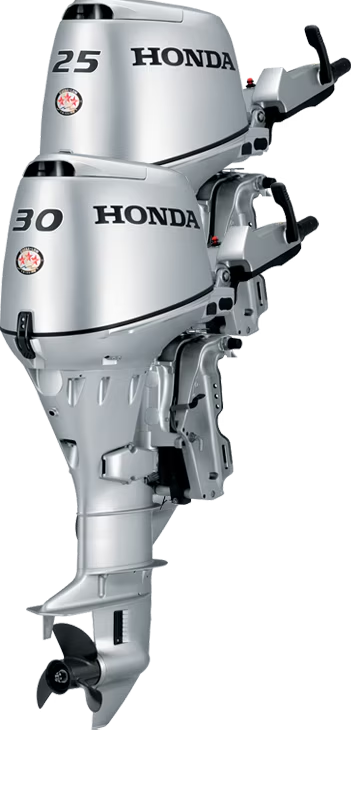

ENGINE BF25 BF30
Type 4-Stroke SOHC, 3 Cylinder/6 Valves 4-Stroke SOHC, 3 Cylinder/6 Valves
Displacement 499 cc (30.4 cubic inches) 499 cc (30.4 cubic inches)
Bore & Stroke 61 mm x 57 mm (2.4 x 2.2 inches) 61 mm x 57 mm (2.4 x 2.2 inches)
Full Throttle RPM Range 5,300-6,300 RPM 5,000-6,000 RPM
Rated Power 25 HP @ 5,500 RPM 30 HP @ 5,500 RPM
Cooling System Water Cooled Water Cooled
Fuel Delivery 3 Carburetors 3 Carburetors
Ignition System PGM-IG PGM-IG
Starting System Electric Electric
Exhaust Through Hub Through Hub
Lubrication Wet Sump Wet Sump
Trim Range 5 Stage: 4°-8°-12°-16°-20° 5 Stage: 4°-8°-12°-16°-20°
Tilt Range 72° 72°
DRIVE BF25 BF30
Gear Ratio 2.08:1 2.08:1
Gear Shift F-N-R F-N-R
EQUIPMENT BF25 BF30
Alternator (Electric Start) 12 Amp (150 watt) 12 Amp (150 watt)
Alternator with voltage regulator (Manual Start) N/A N/A
Propeller 3-Blade Aluminum 3-Blade Aluminum
Diameter x Pitch, Standard 9 1/4 x 12 inches 9 1/4 x 12 inches
Power Tilt & Trim N/A Available
Gas Assist Tilt Available Available
Oil Pressure Alert Standard Standard
Temperature Alert Standard Standard
Low Oil Pressure RPM Reduction Standard Standard
Battery Charge Cable Standard Standard
Emergency Stop Switch Standard Standard
Hour Meter N/A N/A
WARRANTY BF25 BF30
Recreational 5 years 5 years
Commercial/Rental 2 years 2 years
Optional Extended Up to 36 months Up to 36 months
DIMENSIONS BF25 BF30
Overall Width 375 mm / 14.8 inches 375 mm / 14.8 inches
TRANSOM HEIGHT BF25 BF30
S-Type 381 mm / 15 inches 381 mm / 15 inches
L-Type 508 mm / 20 inches 508 mm / 20 inches
X-Type 635 mm / 25 inches N/A
DRY WEIGHT BF25 BF30
S-Type 70.5 kg / 155 lbs 70.5 kg / 155 lbs
L-Type 72 kg / 159 lbs 72 kg / 159 lbs
X-Type 73 kg / 161 lbs N/A
